| Smith Custom Bass Humbucking Soapbar Pickups |
| ~ Please Call For Pricing and Availability ~ |
| **** See Below For Dimensions **** |
 |
4 - String Model Flat Tops now available in 4,5 & 6-String |
 |
5 - String Model 5 wide model also available Flat Tops now available in 4,5 & 6-String |
 |

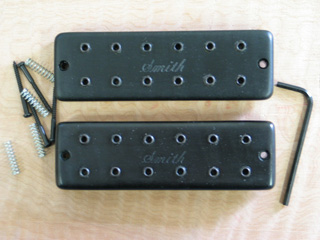

6 - String Model 6 wide model also available Flat Tops now available in 4,5 & 6-String |
 |

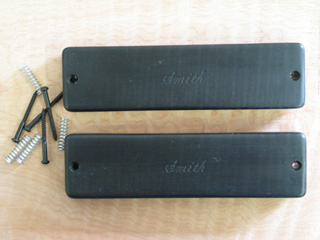

7 - String Model Flat Top Only Flat Tops now available in 4,5 & 6-String |
 |
|
SIDE VIEW OF SOAPBAR PICKUP |
 |

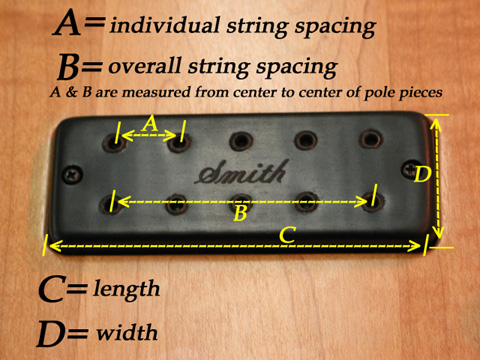

| DIMENSION
CHART
**** Please Note That All Dimensions Are Approximate **** |
| 4 STRING | A | B | C | D | E |
| Neck | 11/16" 18mm | 2 1/16" 53mm | 3 11/16" 94mm | 1 7/16" 37mm | 9/16" 14mm |
| Bridge | 23/32" 18.5mm | 2 3/16" 56mm | 3 11/16" 94mm | 1 7/16" 37mm | 9/16" 14mm |
| 5 STRING | A | B | C | D | E |
| Neck | 11/16"- 17.5mm | 2 11/16" 68mm | 4" 102mm | 1 7/16" 37mm | 9/16" 14mm |
| Bridge | 11/16"+ 18mm | 2 13/16" 71mm | 4" 102mm | 1 7/16" 37mm | 9/16" 14mm |
| 5 Wide Model | A | B | C | D | E |
| Neck | 11/16"+ 18mm | 2 13/16" 71mm | 4" 102mm | 1 7/16" 37mm | 9/16" 14mm |
| Bridge | 23/32" 18.5mm | 2 7/8" 73mm | 4" 102mm | 1 7/16" 37mm | 9/16" 14mm |
| 6 STRING | A | B | C | D | E |
| Neck | 11/16"- 17.5mm | 3 5/16" 85mm | 4 3/4" 121mm | 1 7/16" 37mm | 9/16" 14mm |
| Bridge | 11/16"+ 18mm | 3 7/16" 88mm | 4 3/4" 121mm | 1 7/16" 37mm | 9/16" 14mm |
| 6 Wide Model | A | B | C | D | E |
| Neck | 11/16"+ 18mm | 3 1/2" 88.5mm | 4 3/4" 121mm | 1 7/16" 37mm | 9/16" 14mm |
| Bridge | 23/32" 18.5mm | 3 5/8" 92mm | 4 3/4" 121mm | 1 7/16" 37mm | 9/16" 14mm |
| 7 STRING | A | B | C | D | E |
| Neck | N/A | N/A | 5 1/2" 139mm | 1 7/16" 37mm | 9/16" 14mm |
| Bridge | N/A | N/A | 5 1/2" 139mm | 1 7/16" 37mm | 9/16" 14mm |
 |
